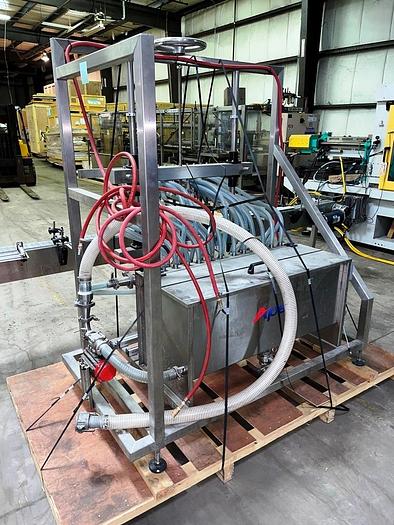

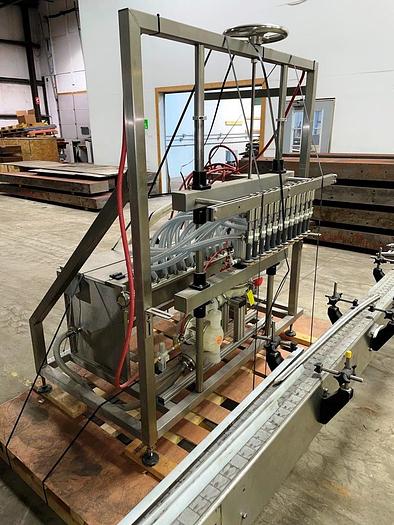

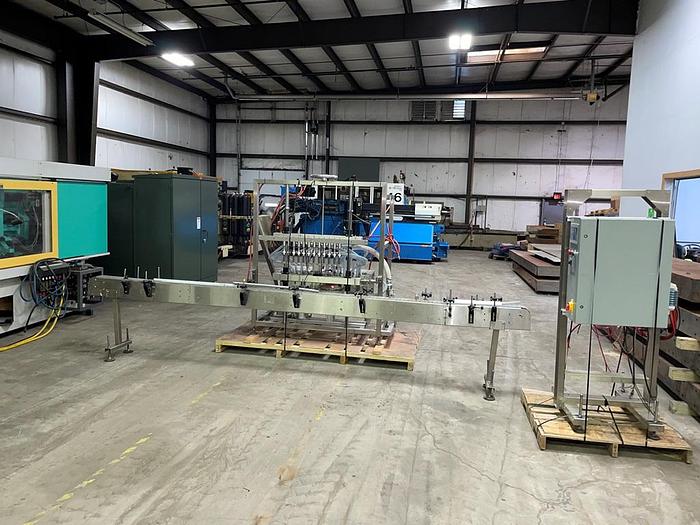

Apex Filling Systems POF-12 12 Spout Pressure Liquid Filler

Apex Filling Systems POF-12 12 Spout Pressure Liquid Filler

Call For Location

orCall 1-330-325-9000




APOF series filling machines are based on the FILL TO LEVEL PRINCIPLE.


Pressure overflow fillers deliver a quantity of free flowing liquid

product into a container until the product reaches a visual fill level. They are ideal

for a wide variety of product and container types.

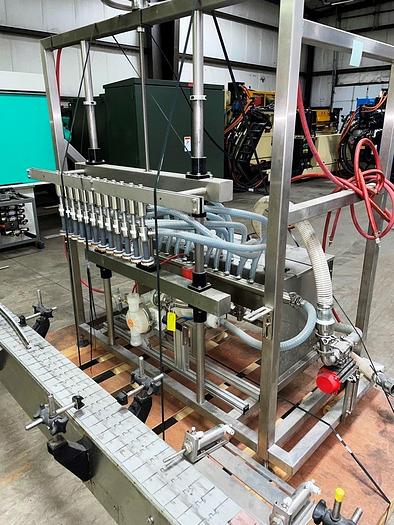

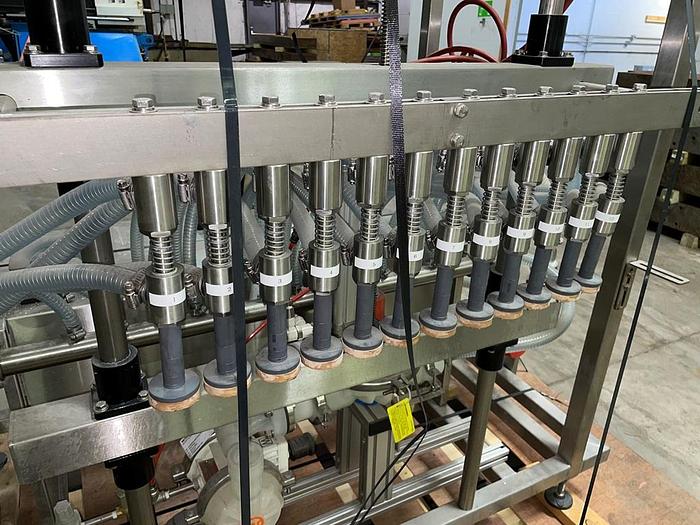

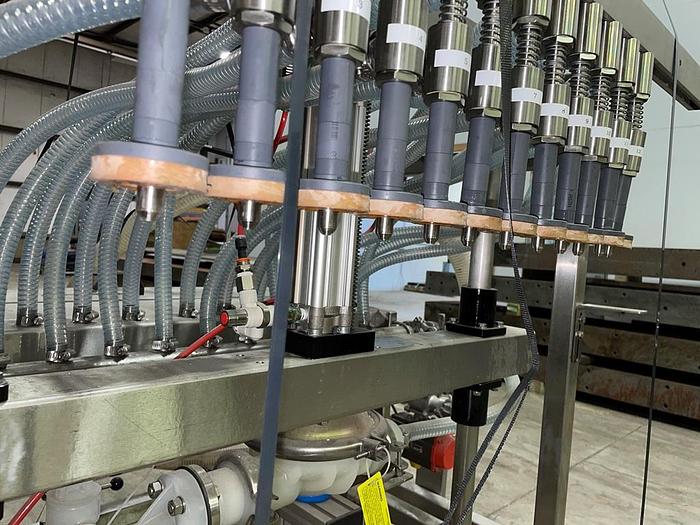

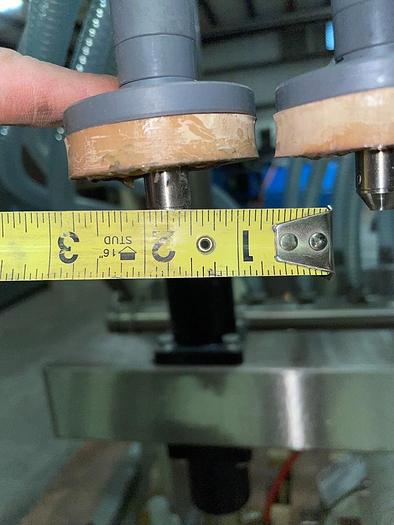

Each fill head utilizes a dedicated (300 Series) Stainless Steel Mechanical Filling Nozzle.

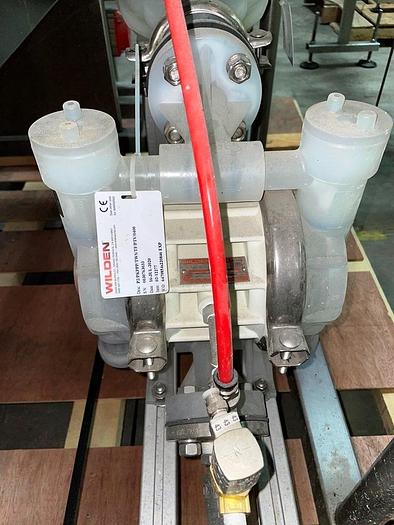

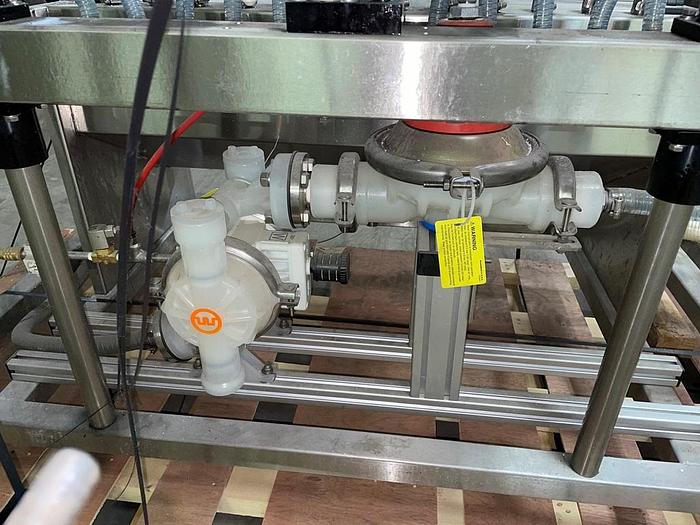

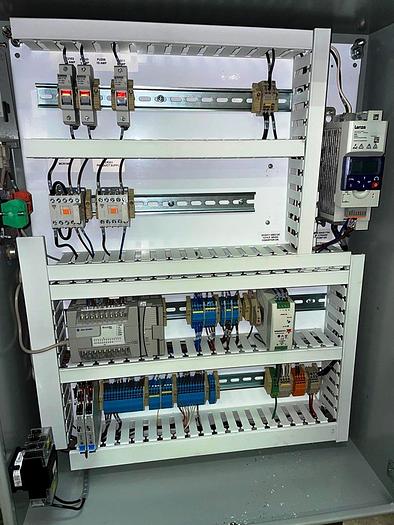

Filler includes Touch Screen PLC Control Package, Sensor Package, S.S. Head Centrifugal Pump

for Product Pressure delivery, Conveyor System, Automation Package with Dual

Pin Escapement Indexing, and S.S. Surge / Supply Tank all mounted on a heavy

duty S.S. Frame.

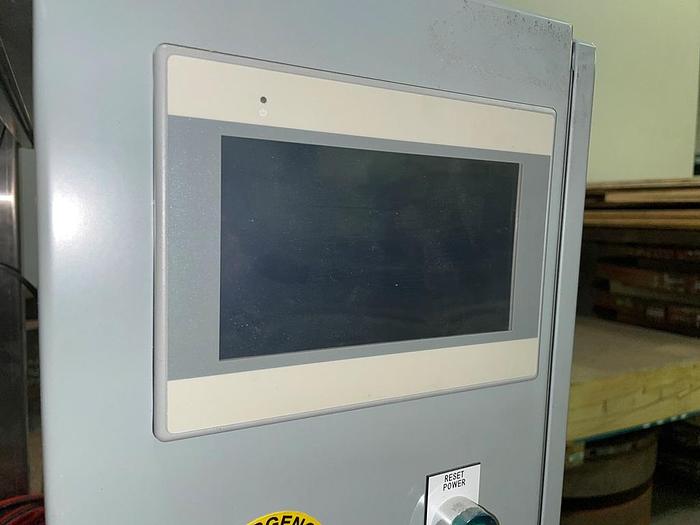

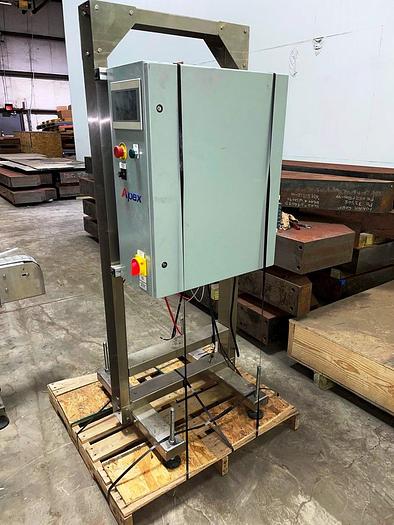

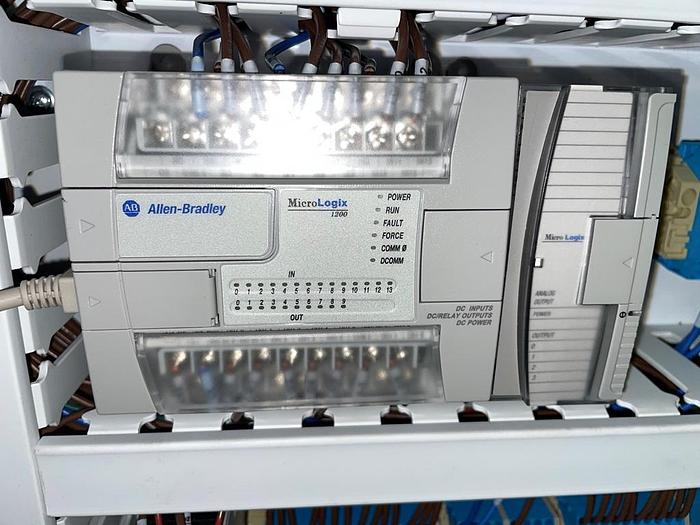

System uses a color Touch Screen Interface PLC control package

with:- On screen help guides- Job / recipe memory- Manual jog

mode- Complete variable operational timer controls- PLC interface

with real time Input / Output display- Management Screen including real

time machine production rates- Trouble shooting assistance with on screen

error messages- Powered Height Adjustment

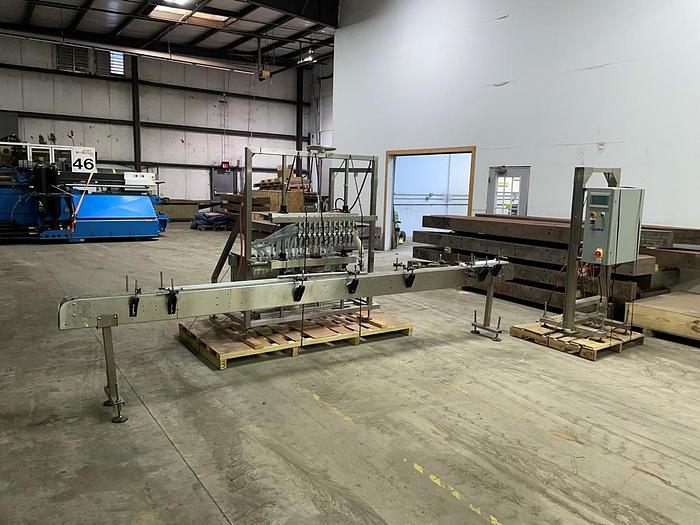

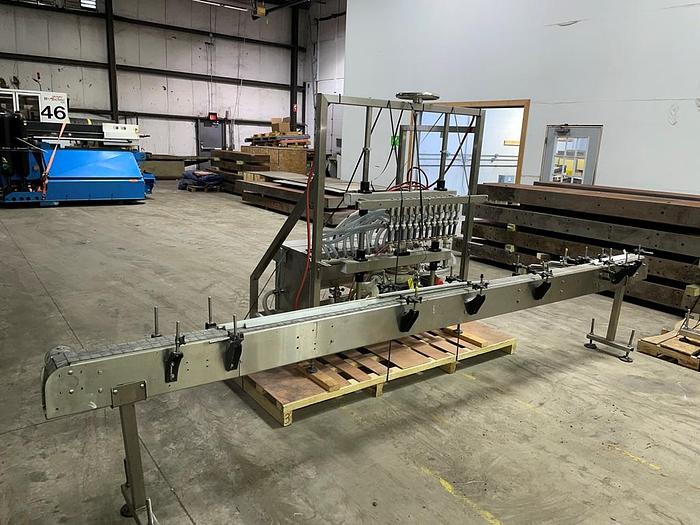

15` Long Delrin Conveyor belt, S.S. Frame Construction - Variable Speed Control Conveyor System


Dual Pin Escapement pin indexing system.


Fully adjustable to accommodate a wide range of containers diameters and heights.


High efficiency system allows for maximum throughput of containers in the work area.

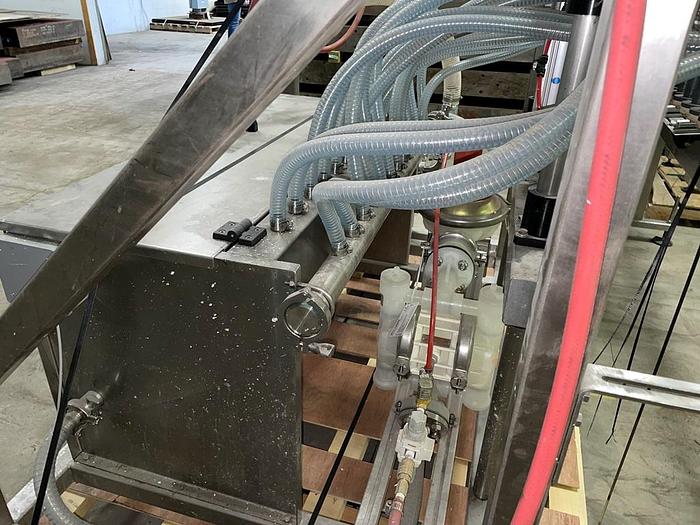

20 gallon Surge / Supply Tank. S.S. Construction with Sanitary inlet / outlet connections.


Additional upgrades that are available include:- Drip Tray- Container Neck Location Assembly-


Sanitary Upgrade- Wash Down (Except Touch Screen)- Hazardous Location- Tank Float Kit System-


Star Wheel Indexing- Variable Speed Pump Control


ManufacturerApex Filling Systems
ModelPOF-12 12 Spout Pressure Liquid Filler

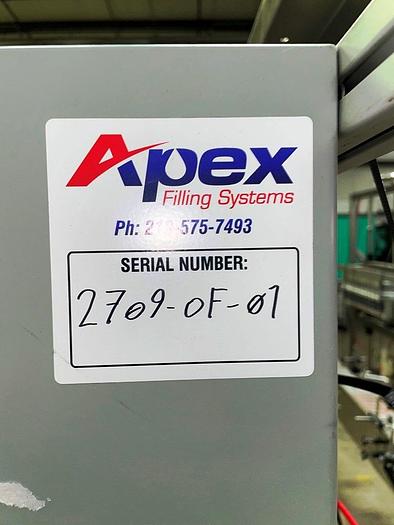

Serial Number2709-0F-01
Stock Number24614
