BCast 200 Gallon Kettle

BCast 200 Gallon Kettle

Ravenna, OH

orCall 1-330-325-9000

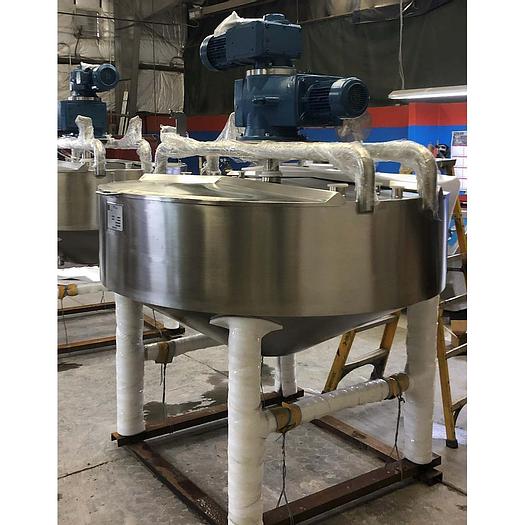

BCast 200 Gallon 365 Gallon Capacity) Jacketed Cook and Cool Tank in accordance with the following specifications: with 120° included angle hinged covers with handles and latch, mounted from the center bridge be insulated with chloride free mineral fiber insulation. with 120° included angle feet, T-304 s/s. Leg will mount to inner cone bottom and extend through outer bottom skin. floor. less valve height Valve will be supplied by Bcast. flush mount sidewall height x 84” approx. overall height head will be supplied with 2 mm gauge, T-304 s/s dimpled heat transfer surface with (1) 2” inlet and (1) 2” outlet threaded pipe nipple connection and supplied with directional baffling. Connections -code stamped heat transfer jacket for use at 75 PSI. of agitator counter-rotating agitator with bottom scrape driven by 5 HP right angle helical bevel gear motor operating at 23 RPM. Motor will be 230-460/3/60 washdown (less starter) inverter duty. Scraper blades will be included.


Stock Number22132-KT
Inner shell4mm, T-316 stainless steel
Inner bottom4 mm, T-316 s/s, conical
Top covers3mm gauge, T-316 s/s, two-piece
InsulationFull sidewall and bottom head will
Outer shell3 mm gauge, T-304 s/s
Outer bottom3 mm gauge, T-304 s/s, Conical
Supports(4) 4” pipe legs with adjustable ball
OutletFlange for flush mount valve 3" , 21"to
Thermowell(1) Pyromation tank adapter
Dimensions72” ID x 74” OD x 16” straight
Heat transfer surfaceThe full bottom
BridgeT-316L s/s center bridge for supporting
Baffle(1) internal adjustable baffle, T-316L s/s.

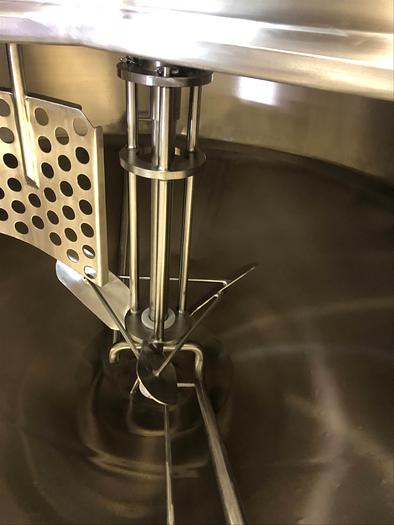

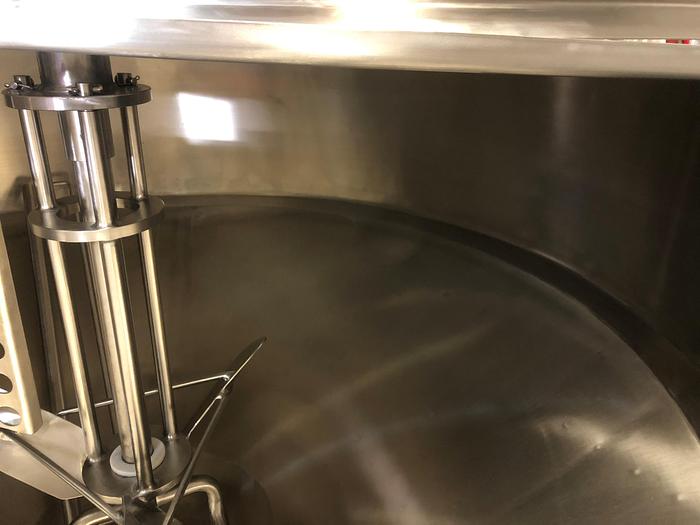

AgitatorTop entry dual motion
Tank ratingTank is designed for 75 psi @
Material finishAll interior surfaces will be
Weld finishAll interior and exterior welds will
